To date Douglas Marine is the world leader in the production of mooring devices with a range of shock absorbers for boats from 1 to 900 tons, as well as being one of the leading European manufacturers of anchor attachments and fender profiles in stainless steel. All products are designed and made in Italy.
Product Range
Anchoring

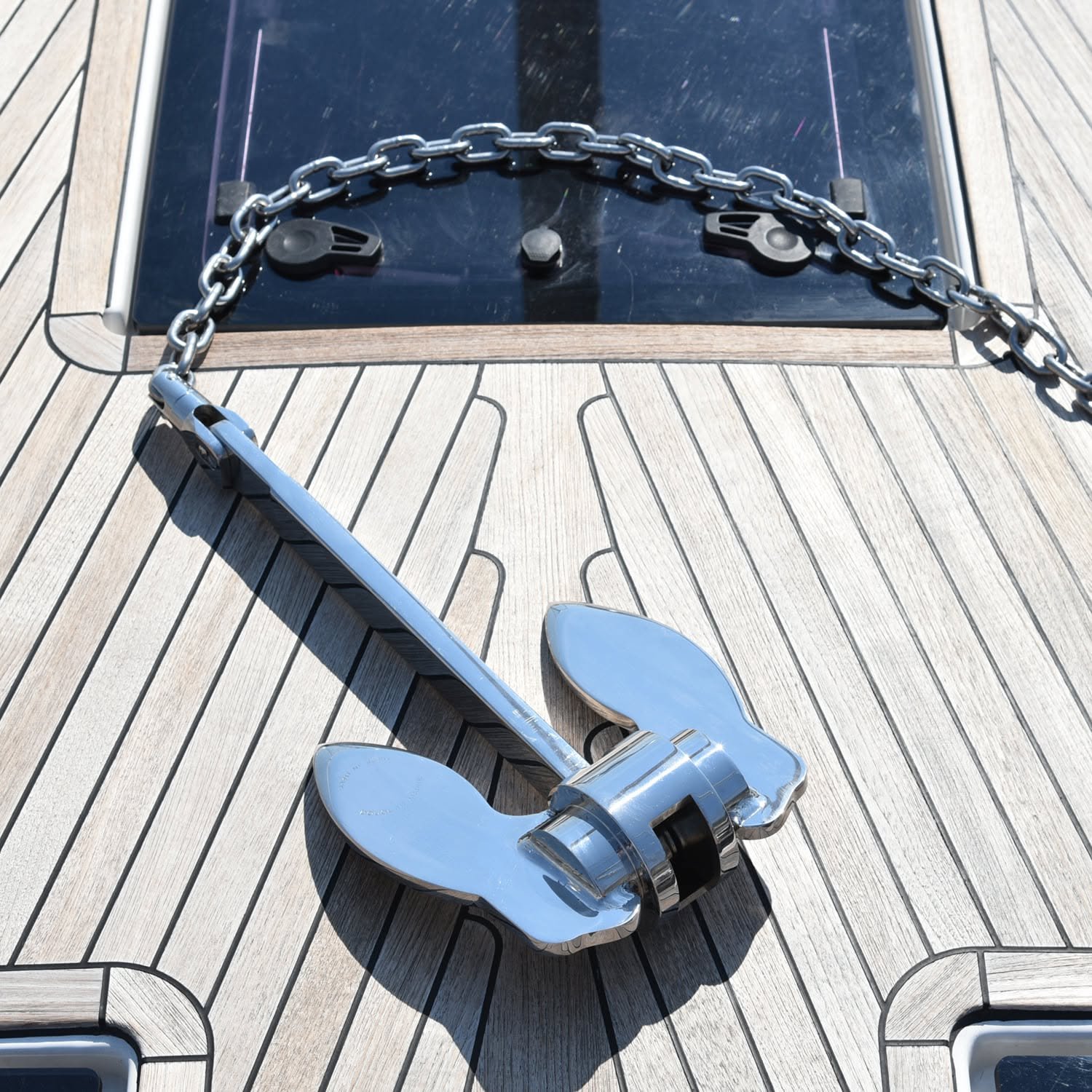

Anchoring Chain Accessories, Anchors & Anchor Connectors
Shipbuilding

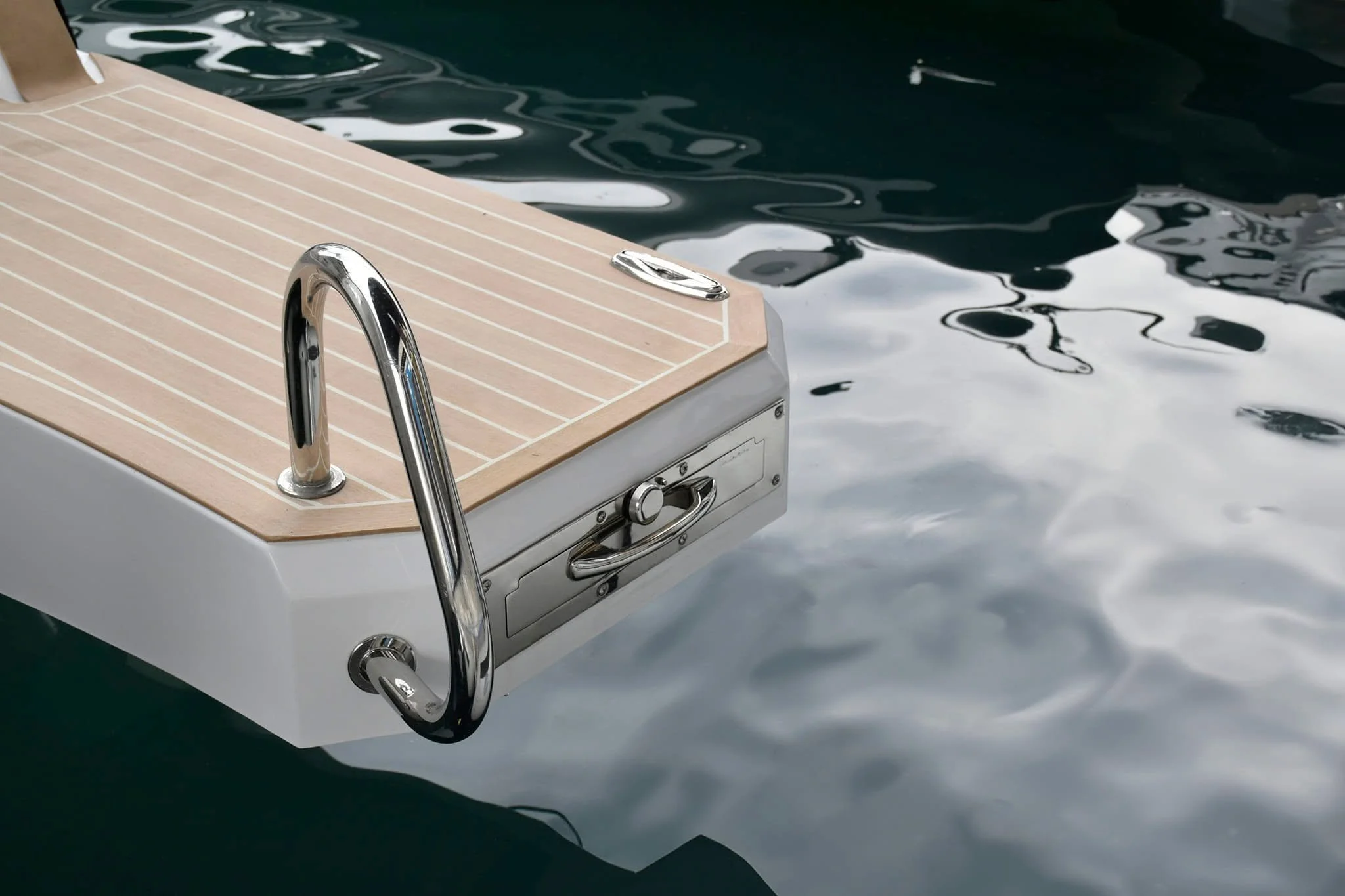

Stainless Steel profiles, Marine Ladders and Stabilizers
Nautical Hardware
Nautical Hardware and Accessories
Mooring

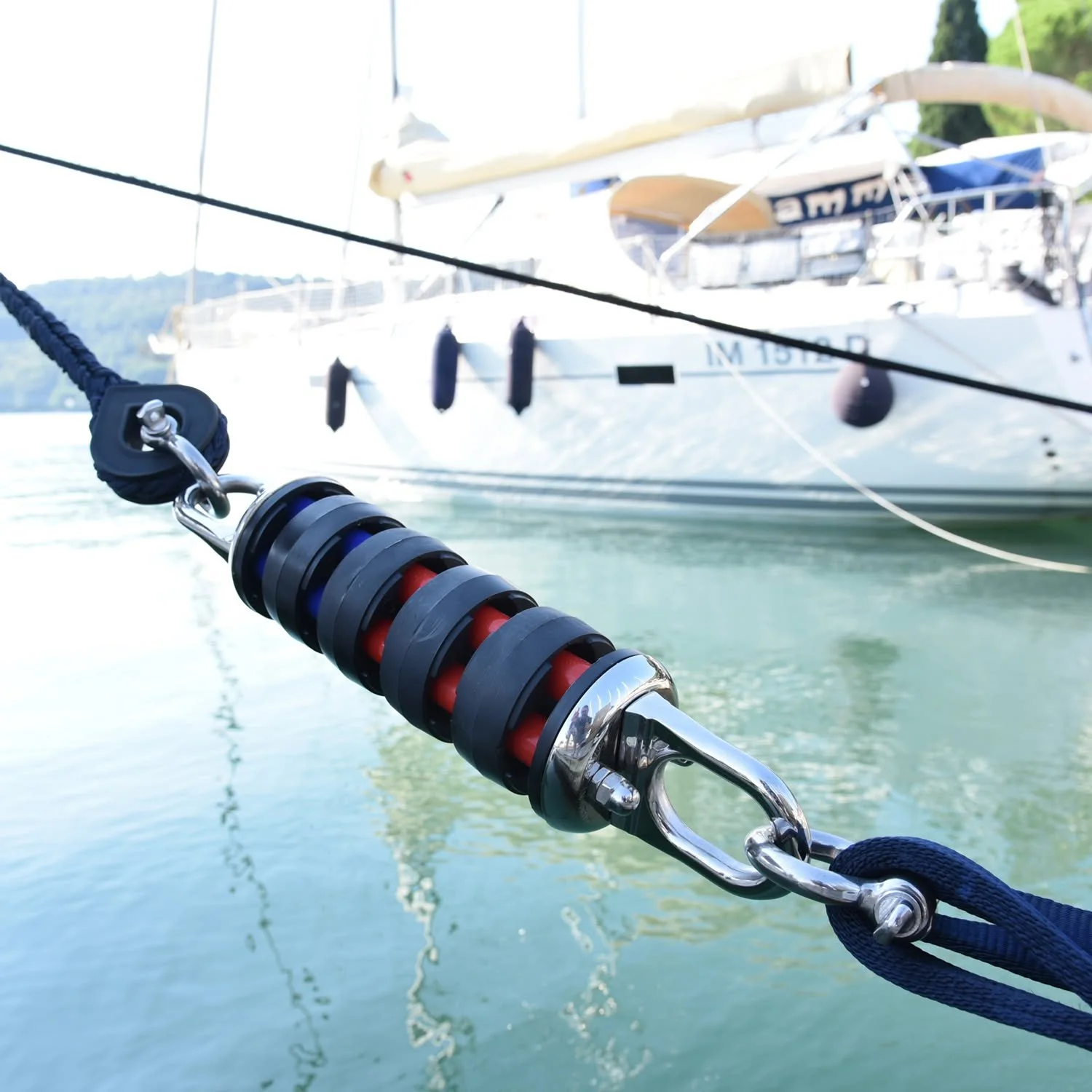

Mooring Accessories and Mooring Shock Absorbers
Douglas Marine Web Store
A select range of products is available on our web store. For the full range and trade pricing please use the contact us form and we will be in touch.
Power take-off on chains for winches or mooring lines. Made of precision-cast and polished stainless steel AISI 316.
Engages the chain even is already under tension
Easy to remove in case of need
Avoids the bypassing of the chain from gypsy
Unloading of the winch from the mooring effort.
For chains 10-12mm
Rotatable stainless steel AISI 316 connector to link the anchor to the chain. Thanks to the reinforcement of the anchor hold section the breaking load is more than double.
Safety screws anti-cam-out of the pin
Side of anchor connection with special reinforcement, extremely resistant
Chain diameter: 10-12mm
Joint Diameter: 38mm
Dimensions: A - 122mm | B - 27mm | C - 15 mm | D: 37mm
Breaking Load: 12000kg
Anchor Weight: Up to 50kg
Rotatable stainless steel AISI 316 connector to link the anchor to the chain.
Safety Screws anti-cam out of the pin
Chain Diameter: 6-8mm
Weight: 0.245kg
Breaking Load: 3000kg
Dimensions: B - 9mm | L - 17mm | G - 20mm | P - 8mm | A - 84mm
Anchor Weight: Up to 15kg

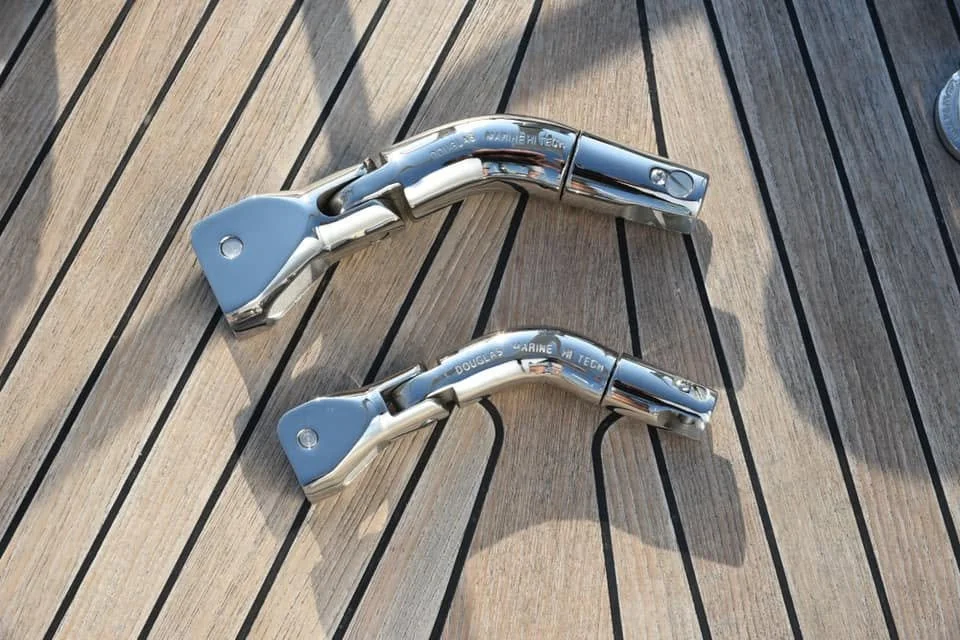

Polished stainless steel Aisi 316 anchor connector with self -righting function and safety screws.
Double Joint - Avoids lever boom effect with heldon anchor
Anti-oscillation anchor connector
Security screws and reduced dimensions
CODE: 010 -P1
CHAIN: 6/8mm
DIMENSIONS: (AxBxC) 200 × 15 × 27 mm
BREAKING LOAD: 3200 kg
ANCHOR WEIGHT (recommended): 7 - 17 kg
